Quick answer: The number of crawl space fans you need depends on the space's square footage, fan CFM, layout, climate, and whether the crawl space is vented or encapsulated. Start by calculating the required airflow rather than choosing a fixed number of fans. Separate or obstructed sections may need their own fans, while hot-humid climates may require dehumidification instead of more outdoor ventilation.
There's no universal "one fan per X square feet" rule for crawl spaces. The right fan count depends on several interacting factors: the crawl space's volume, the CFM rating of the fan you choose, the airflow path between intake and exhaust, whether the space is divided into isolated zones, your overall ventilation strategy, and the moisture level of outdoor air in your region.
Rather than guessing at a number, this guide walks through how to calculate the airflow your crawl space actually needs, when a single fan covers that requirement, and when your layout calls for more than one unit.
First, Decide What the Fan Needs to Do
Before calculating the number of fans, identify whether the system will exchange air with the outdoors or circulate air within the crawl space. An exhaust fan removes crawl space air and requires a clear makeup-air path. A supply fan brings outdoor air inside, so its effectiveness depends heavily on outdoor moisture conditions. An internal circulation fan simply moves air between different areas of the crawl space and does not remove moisture by itself.
These functions should not be treated as interchangeable when calculating fan capacity. Exhaust, supply, and circulation CFM cannot simply be added together as if every fan performs the same job. Before choosing a ventilation setup, determine whether crawl space ventilation fans work in your climate.
How to Calculate How Many Crawl Space Fans You Need
The simplest way to estimate fan count is to start with the area each fan is designed to cover, then adjust for the crawl space layout and the fan’s intended purpose.
Step 1: Measure the Crawl Space
Calculate the area the fan will actually serve:
Crawl Space Area = Length × Width
If you also need the space’s volume, multiply the area by the average crawl space height:
Crawl Space Volume = Length × Width × Average Height
Use the actual crawl space dimensions rather than the total finished square footage of the home. If foundation walls or other obstructions divide the space into separate sections, measure each section individually.
Step 2: Check the Fan’s Published Coverage
Use the manufacturer’s published coverage to calculate an initial fan count:
Base Fan Count = Crawl Space Area ÷ Published Coverage per Fan
Always round the result up to the next whole fan. For example, if a fan is listed for spaces up to 1,200 square feet, a 2,000-square-foot open crawl space would have a base estimate of two fans:
2,000 ÷ 1,200 = 1.67, rounded up to 2 fans
Published coverage is a starting point, not a guarantee. Actual performance depends on the fan’s intended use, available openings, airflow restrictions, controls, and crawl space layout.
Step 3: Use CFM When a Target Airflow Has Been Specified
If a manufacturer, building professional, or local requirement provides a target airflow rate, calculate the number of fans using:
Number of Fans = Required Airflow ÷ Rated Fan CFM
Round the result up to the next whole fan. Only compare fans performing the same function. Supply, exhaust, and internal circulation ratings should not be added together because they represent different parts of the airflow system.
Step 4: Adjust for Separate Airflow Zones
A single fan may meet the area or CFM calculation on paper but still leave parts of the crawl space untreated. Foundation walls, closed doors, HVAC equipment, ductwork, support piers, and narrow passages can prevent air from moving between sections. When the crawl space contains isolated zones, each zone may need its own fan or a dedicated airflow path.
Crawl Space Fan Count Examples
Example 1: A 1,000-Square-Foot Open Crawl Space
If you are considering a fan with published coverage of up to 1,200 square feet, the base calculation suggests that one fan may be enough:
1,000 ÷ 1,200 = 0.83, rounded up to 1 fan
This assumes the crawl space is open, the airflow path is clear, and the selected fan is suitable for the intended ventilation or circulation strategy.
Example 2: A 2,000-Square-Foot Open Crawl Space
Using the same 1,200-square-foot coverage rating:
2,000 ÷ 1,200 = 1.67, rounded up to 2 fans
The two fans should be positioned to serve different parts of the crawl space rather than being installed next to each other.

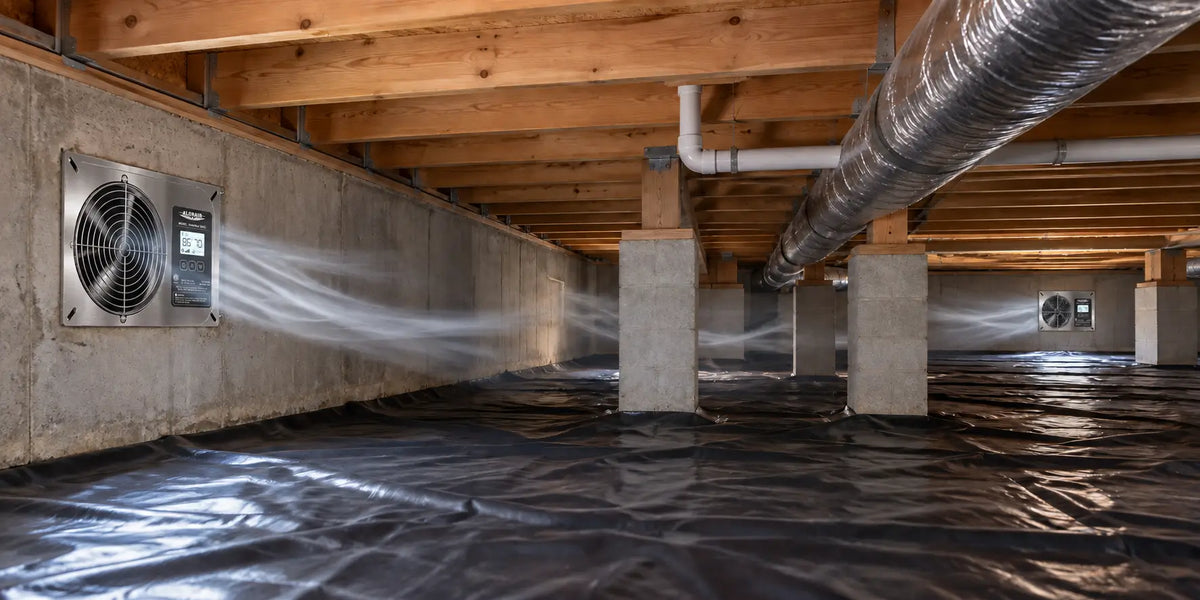

Example 3: A Divided 1,000-Square-Foot Crawl Space
A 1,000-square-foot crawl space may fall within one large fan’s published coverage. However, if a foundation wall divides it into two isolated 500-square-foot sections, one centrally located fan may not move air effectively between them. In that situation, two smaller fans—or a dedicated opening that connects the zones—may provide more even airflow.
When One Crawl Space Fan Is Not Enough
Even when the total square footage falls within a single fan's rated coverage, certain layouts call for more than one unit.
The Crawl Space Has Separate Sections
Foundation walls, closed doors, support piers, large HVAC equipment, ductwork, or very low passages can all block air from moving freely between sections. If air can't travel from one part of the crawl space to another, each isolated zone may need its own fan or a dedicated airflow path connecting it to the rest of the space.
The Fan Is Too Far From the Makeup-Air Opening
An exhaust fan needs a makeup-air path to work effectively. If the intake and exhaust points sit too close together, the fan can create short-circuit airflow—pulling air from a small area near the openings while leaving the rest of the crawl space untouched.
The Crawl Space Has an Irregular Shape
L-shaped crawl spaces, or those with multiple narrow extensions, often need more than one smaller fan even when the total square footage isn't large. A single fan positioned centrally may not reach the far ends of an irregular footprint.
Moisture Is Concentrated in One Area
Wet corners, condensation around pipes, areas near foundation openings, and sections close to HVAC ductwork may need more targeted airflow than a single centrally located fan can provide. However, concentrated moisture can also indicate a plumbing leak, drainage problem, exposed ground vapor, air leakage, or poorly insulated ductwork. Identify and correct the moisture source before adding fans; airflow alone will not fix ongoing water intrusion.
Once you know the required airflow and number of units, review proper crawl space fan installation and placement to make sure each fan is positioned where it can actually do its job.
One Large Fan or Multiple Smaller Fans?
|
Option |
Advantages |
Limitations |
|---|---|---|
|
One large fan |
Lower equipment count; simpler wiring and maintenance |
May create uneven airflow or leave distant zones untreated |
|
Multiple smaller fans |
Better distribution across long or divided spaces |
More installation points, power connections, and maintenance |
|
Exhaust plus circulation fans |
Separates outdoor air exchange from internal distribution |
Requires a planned makeup-air path and control strategy |
For an open, rectangular crawl space, one properly placed fan may be enough. For long, irregular, or divided crawl spaces, multiple smaller fans usually provide more even airflow than a single large unit.
Match the Calculation to AlorAir Fan Coverage
Once you have an estimated CFM requirement, you can compare it against published coverage figures for specific fan models. The table below reflects coverage currently listed for AlorAir's fan lineup, though you should always confirm the numbers on the individual product page before purchasing.
|
AlorAir Fan Series |
Rated Airflow |
Published Coverage |
|---|---|---|
|
VentirPro 260 / 260S |
260 CFM |
Up to 500 sq ft |
|
VentirMax 300S |
300 CFM |
Up to 550 sq ft |
|
VentirPro 540 / 540S |
540 CFM |
Up to 900 sq ft |
|
VentirMax 570S / 570SD |
570 CFM |
Up to 950 sq ft |
|
VentirPro 720 / 720S |
720 CFM |
Up to 1,200 sq ft |
|
VentirMax 780S / 780SD |
780 CFM |
Up to 1,300 sq ft |
Published coverage is a product-specific starting point, not a universal rule. A divided crawl space may need multiple fans even when its total area falls within one fan's listed coverage. For example, a 1,000 sq ft open crawl space may fit within the published coverage of one 720 CFM model, while the same 1,000 sq ft divided into two isolated sections may need two smaller fans for better distribution.
Check the Climate Before Adding More Fans
Fan count only matters after confirming that the ventilation strategy is appropriate for the crawl space. In hot-humid climates, outdoor air can contain more moisture than crawl space air. Pulling that air across cooler pipes, ducts, framing, or masonry may increase relative humidity and condensation rather than dry the space. Standing water, plumbing leaks, poor drainage, and exposed soil should also be corrected before adding ventilation equipment. If moisture control is the main goal, compare whether a fan or dehumidifier is better for your crawl space.
Final Fan Count Checklist
- Measure the crawl space length, width, and average height.
- Identify whether the fan will exhaust, supply, or circulate air.
- Calculate the preliminary required CFM.
- Divide the total CFM by the selected fan's rated airflow.
- Round up to the next whole fan.
- Count isolated zones and adjust the number if airflow is blocked.
- Confirm that outdoor air is suitable for ventilation in your climate.
- Verify local code and installation requirements.
- Monitor humidity after installation rather than assuming the system works.
Frequently Asked Questions
How many crawl space fans do I need for 1,000 sq ft?
One fan may be enough for an open 1,000 sq ft crawl space if its published coverage and actual airflow meet the requirement. A divided or irregular space may need two smaller fans for more even circulation.
How many CFM do I need for my crawl space?
Multiply the crawl space volume by your target air-change rate, then divide by 60 (Volume × ACH ÷ 60). Treat this as a preliminary planning calculation rather than a fixed code requirement.
Is one crawl space fan enough?
It depends more on layout than on total area. An open, rectangular space often works fine with one fan, while a crawl space with separate sections, obstructions, or an irregular shape may need more than one to reach every zone.
Should I use one large fan or two smaller fans?
Open, rectangular crawl spaces tend to work well with a single larger fan. Long, L-shaped, or divided crawl spaces usually benefit from multiple smaller fans placed closer to each zone.
Size the System, Then Choose the Count
Getting the fan count right starts with calculating airflow, not picking a number based on square footage alone. Adjust that calculation for isolated zones, confirm your local climate supports the ventilation strategy you're planning, and only then decide how many fans to install.
Compare available crawl space ventilation fans by airflow and published coverage to find the combination that matches your calculated requirement.
