When the winter air turns brittle and your indoor humidity levels drop, your whole-house humidifier becomes the most important appliance in your home. However, many homeowners forget that the performance of this system relies entirely on a single, inexpensive component: the water panel.
Learning how to change a water panel AprilAire is one of the simplest DIY tasks you can perform to protect your family's health and your home’s infrastructure. At AlorAir, we advocate for total environmental control. While our dehumidifiers manage the moisture in your crawlspace, maintaining your humidifier filters ensures your living space remains a sanctuary during the dry heating season.
What is an AprilAire Water Panel?
An AprilAire Water Panel (also frequently called a humidifier filter) is the core of your humidification system. It consists of a porous, honeycomb-like aluminum mesh frame coated with a special porous material.
- The Evaporation Process: Hot air from your furnace passes through this saturated mesh. As the air moves through, it evaporates the water on the panel, carrying moisture into your home's ductwork.
- The Filtration Bonus: While its primary job is evaporation, the panel also traps mineral deposits from your water supply, preventing "white dust" from entering your air.
Why You Must Change Your Water Panel Regularly
A clogged water panel is more than just a nuisance; it is a threat to your HVAC system and your health. Over a heating season, minerals like calcium and lime build up on the mesh, turning it into a hardened, non-porous block.
The Impact of Maintenance Neglect
|
Problem |
Cause |
Result |
|
Low Humidity |
Clogged mesh blocks airflow. |
Dry skin, nosebleeds, and respiratory issues. |
|
Water Leaks |
Scale buildup redirects water flow outside the tray. |
Potential water damage to your furnace or floor. |
|
Energy Inefficiency |
Furnace must run longer to reach humidity setpoint. |
Higher utility bills and shortened HVAC lifespan. |
|
Mold Growth |
Stagnant water on a dirty panel becomes biological. |
Musty odors and allergy triggers. |
When to Change Your Water Panel: The Schedule
Not all water panels are created equal. Depending on your model and the hardness of your water, your replacement schedule will vary.
- Models 10, 12, and 35: Replace annually (typically at the start of the heating season).
- Model 45: Replace twice per heating season (high-capacity steam units require more frequent attention).
- Hard Water Homes: If your home uses well water or has high mineral content, check your panel every 3 months.
Step-by-Step: How to Change Your Water Panel AprilAire
You do not need to call a professional to swap your filter. Follow these simple steps to ensure a perfect fit:
Step 1: Turn Off the System
Safety first. Turn your humidistat (the controller) to the "Off" position. You do not necessarily need to shut off the furnace power, but the humidifier should not be active.
Step 2: Access the Panel
Most AprilAire units have a cover held in place by a compression clip or a simple screw. Pop the cover off to reveal the plastic "scale control insert."
Step 3: Remove the Scale Control Insert
Disconnect the water feed tube from the top of the unit. Slide the entire plastic frame (containing the old panel) out of the humidifier housing.

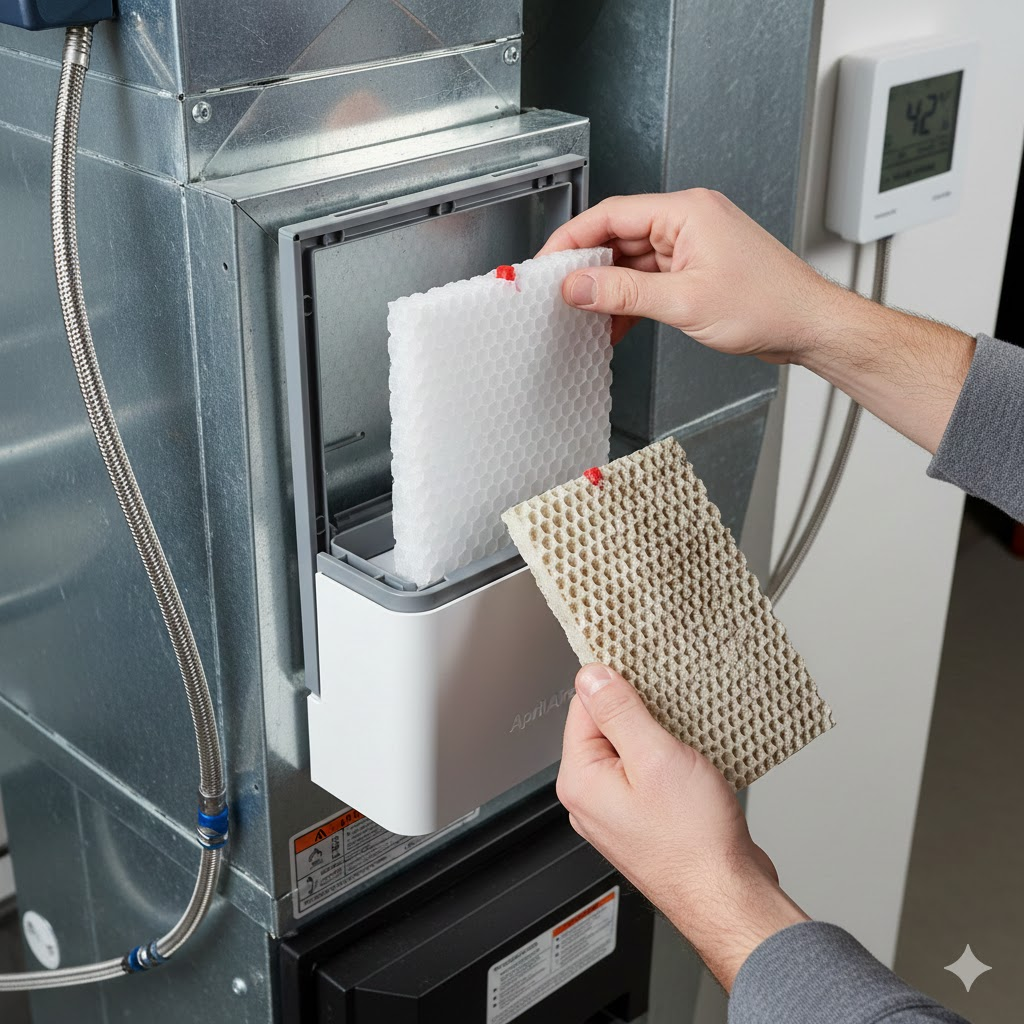

Step 4: Swap the Panel
Pop the old, crusty panel out of the plastic frame. This is a great time to rinse the plastic frame under warm water to remove any loose mineral flakes. Slide the new AprilAire water panel into the frame.
Important: Most panels have a colored mark (usually red or black) on the top. Ensure this mark is facing upward to allow for proper water wicking.
Step 5: Reassemble and Test
Slide the frame back into the unit, reconnect the water tube, and snap the cover back on. Turn the humidistat back to your desired level (usually 40-45%) and check for leaks.
The Link Between Humidity and Energy Savings
One of the best reasons to stay on top of your water panel changes is the economic benefit.Humidity makes you feel warmer. According to building science experts, for every 4% increase in relative humidity, you can lower your thermostat by 1°F without feeling any colder. If your clogged panel is preventing you from reaching a healthy 40% RH, you are likely over-spending on your heating bill to compensate for the "chill" of dry air.
Managing the Foundation: The AlorAir Difference
While you manage the humidity in your living spaces by changing your water panel, you must not forget where your home’s air originates.
Much of the air in your home is pulled up from the crawlspace or basement through the Stack Effect. If your crawlspace is damp and unsealed, it can interfere with your home’s humidification balance.
- Summer Protection: Use an AlorAir Sentinel Dehumidifier to stop mold.
- Winter Protection: A sealed, dry crawlspace prevents the "cold-floor" feeling that makes you want to crank the heat (and dry out the air) even more.
The "White Dust" Mystery: Why Mineral Capture is Key
One of the most common complaints from homeowners using portable humidifiers is a fine layer of white powder covering their furniture. This is caused by minerals in the water being aerosolized into the air.
- How the Water Panel Protects You: In an AprilAire whole-house system, the water panel acts as a mineral trap. As the water evaporates off the aluminum mesh, the minerals stay behind, hardening onto the panel rather than entering your breathing air.
- The Saturation Point: Once a water panel is fully "scaled" (covered in white mineral deposits), it can no longer hold water efficiently. This leads to water running off the panel too quickly, which decreases evaporation and can cause the humidifier to leak into your furnace cabinet.
- AlorAir Insight: Just as an AlorAir PureAiro Air Scrubber removes physical particulates from the air, a clean water panel acts as a "liquid filter," ensuring that the moisture added to your home is pure and mineral-free.
Humidity and Viral Defense: The "Infection Shield"
Changing your water panel isn't just about comfort; it is a critical health intervention. Research shows that most airborne viruses, including the flu and common cold, thrive in dry air (below 40% RH).
- Droplet Behavior: In dry air, respiratory droplets shrink and stay airborne longer, increasing the chance of inhalation. When your water panel is working at peak efficiency and maintaining 45% humidity, these droplets stay heavier and fall to the ground faster.
- Ciliary Function: Your "cilia"—the tiny hairs in your respiratory tract—need moisture to move and sweep out pathogens. When your humidifier fails due to a clogged filter, your body's natural "cleaning crew" shuts down, making you a target for winter illnesses.
- The Healthy Home Balance: While your AlorAir Sentinel prevents mold-related respiratory issues in the summer, a fresh AprilAire water panel prevents viral-related issues in the winter.
Identifying Counterfeit vs. Genuine Water Panels
Because the water panel is so vital, the market is flooded with "generic" or "knock-off" filters. However, using a non-genuine panel can significantly degrade your system.
- The Clay Coating: Genuine AprilAire panels are dipped in a proprietary clay-like material that ensures 100% of the mesh is used for evaporation. Generic panels often use cheaper coatings that allow water to "bead up" and run straight to the drain without evaporating.
- The Paper Frame: Some lower-quality replacements use paper frames that can collapse or grow mold when saturated. Genuine panels use an aluminum or heavy-duty plastic frame designed to withstand constant water contact without degrading.
- Performance Check: If you’ve changed your panel but your humidity levels aren’t rising, check for the "AprilAire" branding on the side of the filter. If it’s missing, your system likely isn't evaporating water at its rated capacity.
Frequently Asked Questions
Which AprilAire water panel do I need?
Check the model number on the outside of your humidifier housing.
- Model 400, 500, 550: Uses Water Panel #10.
- Model 600, 700, 760: Uses Water Panel #35.
- Model 800 (Steam): Uses Water Panel #45.
What happens if I put the water panel in upside down?
The panel has a "wicking" coating. If installed upside down, the water may not spread evenly across the mesh, causing it to run off the sides and potentially leak into your furnace. Always look for the colored mark indicating the top.
Can I wash and reuse an AprilAire water panel?
No. The aluminum mesh is coated with a clay-like material that facilitates evaporation. Scrubbing the panel will remove this coating, rendering the filter useless. Replacement is the only effective option.
My humidifier light is still on after I changed the filter. How do I reset it?
On most digital AprilAire models, you must press and hold the "Reset" or "Change Filter" button for 3 to 5 seconds until the light turns off or the "Change Water Panel" icon disappears.
Why is my water panel getting clogged so fast?
This is usually due to "hard water." High levels of calcium and magnesium in your water supply will crystallize quickly as the water evaporates. If you change your panel more than twice a year, consider a whole-house water softener.
Where is the water panel located?
It is located inside the humidifier unit attached to your furnace (usually on the return or supply plenum). Look for a large plastic box with the AprilAire logo.
Does a dirty water panel smell?
Yes. If minerals and organic particulates build up, and the unit isn't draining properly, it can produce a musty or "sour" odor when the furnace fan is running.
Conclusion
Staying consistent with your AprilAire water panel replacement is the easiest way to ensure your home remains comfortable throughout the winter. By maintaining the "backbone" of your humidifier, you protect your respiratory health, save on energy costs, and prevent costly HVAC repairs.
