A DIY air filtration system for a woodshop uses a fan and one or more filters to capture fine airborne dust that escapes tool-level collection. A common design combines a box fan with MERV 13 furnace filters, although the filter area, airflow resistance, room volume and placement determine how well it performs.
This guide is specifically for workshop dust control. It does not replace a dust collector connected to saws and sanders, local exhaust ventilation or appropriate respiratory protection.
What a DIY Shop Air Cleaner Can—and Cannot—Do
A DIY shop air cleaner recirculates room air through filter media and captures part of the fine dust that remains suspended after cutting, routing or sanding. It can reduce airborne particle buildup and the amount of dust that later settles on tools and finished surfaces.
It does not capture most chips and dust at the moment they are generated. Connect dust-producing tools to a suitable dust collector or shop vacuum whenever possible. Ambient filtration, source collection and respiratory protection serve different purposes and should not be treated as interchangeable.
Choosing a DIY Air Filtration Design
| Design | Best for | Advantages | Limitations |
|---|---|---|---|
| One filter + box fan | Temporary, small-shop use | Cheap and simple | Lower filter area and greater airflow restriction |
| Two-filter wedge | Small to medium shops | Better airflow than one filter | Requires more sealing and floor space |
| Four-filter box | Higher airflow and longer filter life | Large filter area | Bulky and harder to mount |
| Blower in a rigid enclosure | Permanent workshop installation | More mounting and filter options | Higher cost and construction complexity |
Step-by-Step Build Guide
Step 1: Assess Your Space & Requirements
Before choosing a fan, measure your shop’s length, width, and ceiling height. Note which tools produce the most dust and whether they already have a dust collector or shop vacuum connected.
Then look for a place where the air cleaner can move air across the room without blowing settled dust back toward you. Leave enough space to reach the filters when they need changing.
Step 2: Choose Your Base Unit & Fan
Measure the shop’s volume by multiplying its length, width, and ceiling height.
Estimated airflow (CFM) = room volume (cubic feet) × planned air changes per hour ÷ 60
For example, a 20-by-20-foot shop with an 8-foot ceiling holds 3,200 cubic feet of air.Using six air changes per hour as an illustration gives an estimate of 320 CFM.
That number is a planning example, not a guarantee that a particular fan will clean the shop effectively. What matters is the airflow the assembled unit delivers with its filters in place. A box fan’s advertised CFM may be measured under different conditions.
Step 3: Select the Filters
A MERV 13 filter is a reasonable starting point for a box-fan design. It can capture fine airborne particles, but the rating alone does not tell you how much air the finished unit will move.
Give the air plenty of filter surface to pass through. Two or four filters, or deeper pleated filters, may work better than forcing all the air through one thin filter. The result still depends on the fan and the way you build the enclosure.
Before assembly, check the airflow arrow on each filter. Air should pass through the filter first and then enter the fan. Seal the edges so dust cannot slip around the filter.
Step 4: Assemble and Seal the Unit
For a simple box-fan unit:
- Unplug the fan. Place the filter on the intake side, with its airflow arrow pointing toward the fan.
- Secure the filter so it cannot shift or leave open gaps around the edges. If you use several filters, seal the joints between them.
- Fit a cardboard shroud over the unused area around the front grille. Keep the fan blades and safety guard unobstructed.
- Make sure you can remove and replace the filters without damaging the fan or rebuilding the unit.
If you plan to build a rigid enclosure or mount the unit overhead, design the supports and access panels for that installation. A taped box-fan assembly should not be treated as a ready-made ceiling unit.
Step 5: Position the Unit for Room Circulation
Place the unit where its intake and discharge can create a broad circulation path through the shop. Do not aim the discharge so that it blows settled dust from a bench or floor back into the operator’s breathing zone.
Wall or ceiling mounting can save floor space, but the unit needs adequate clearance around both the intake and discharge. It must also remain accessible for filter inspection and replacement. Avoid placing it directly in a corner, behind stored materials or beside a machine that blocks airflow.
Step 6: Test Airflow and Check for Leaks
Turn on the unit and check that air is entering through the filters, not through gaps around them. A small strip of tissue can help you find obvious leaks near the frame.
Then listen for unusual vibration and check that the intake and discharge are clear. Repeat these checks after the filters begin to load with dust.
Visible dust clearing from the room is useful to observe, but it does not measure the fine particles you may breathe. If you use a particle monitor, compare readings during similar tasks and under similar conditions. Do not treat a cleaner-looking room as a reason to stop using tool-level dust collection or appropriate respiratory protection.
Step 7: Maintenance Plan
Check the filters regularly. Replace disposable filters when they are heavily loaded or airflow drops. Clean reusable filters only if their manufacturer allows it.
Inspect the frame, seals, fan guard, and mounting points for loose or damaged parts. Keep accumulated dust away from the motor and grille.
If you use a plug-in timer, confirm that the fan and timer are compatible. A timer does not replace regular checks while the unit is in use.
Parts & Materials List
Here’s a typical parts list for a DIY woodshop air filtration system:
- A UL- or ETL-listed box fan or suitable enclosed blower
- One or more appropriately sized MERV 13 filters
- Cardboard or rigid material for the base and shroud
- Foil tape, duct tape, clamps or reusable straps
- Plywood or another rigid material if building a permanent enclosure
- Fan guards where moving blades are accessible
- Approved mounting hardware if the unit will be installed overhead
- An approved plug-in timer, if desired
- Weatherstripping or foam tape for sealing removable filter panels
Safety Checklist
- Use a certified fan with an intact cord, plug, and guard. Check the model’s safety instructions before using it with filters.
- Do not modify the motor, internal wiring, plug, or factory safety controls.
- Keep the blades guarded. Unplug the fan before changing filters or cleaning the unit.
- Replace clogged filters, and keep dust from building up around the motor and grille.
- Do not run the unit where paint, stain, solvent, or other flammable vapors may be present.
- Use suitable supports if you mount a purpose-built enclosure on a wall or ceiling. Do not suspend an improvised assembly without a secure mounting design.
- Keep the unit clear of exits and walkways.
- Continue collecting dust at the tool and using appropriate respiratory protection during dusty work.
When a Purpose-Built Shop Air Cleaner Makes More Sense

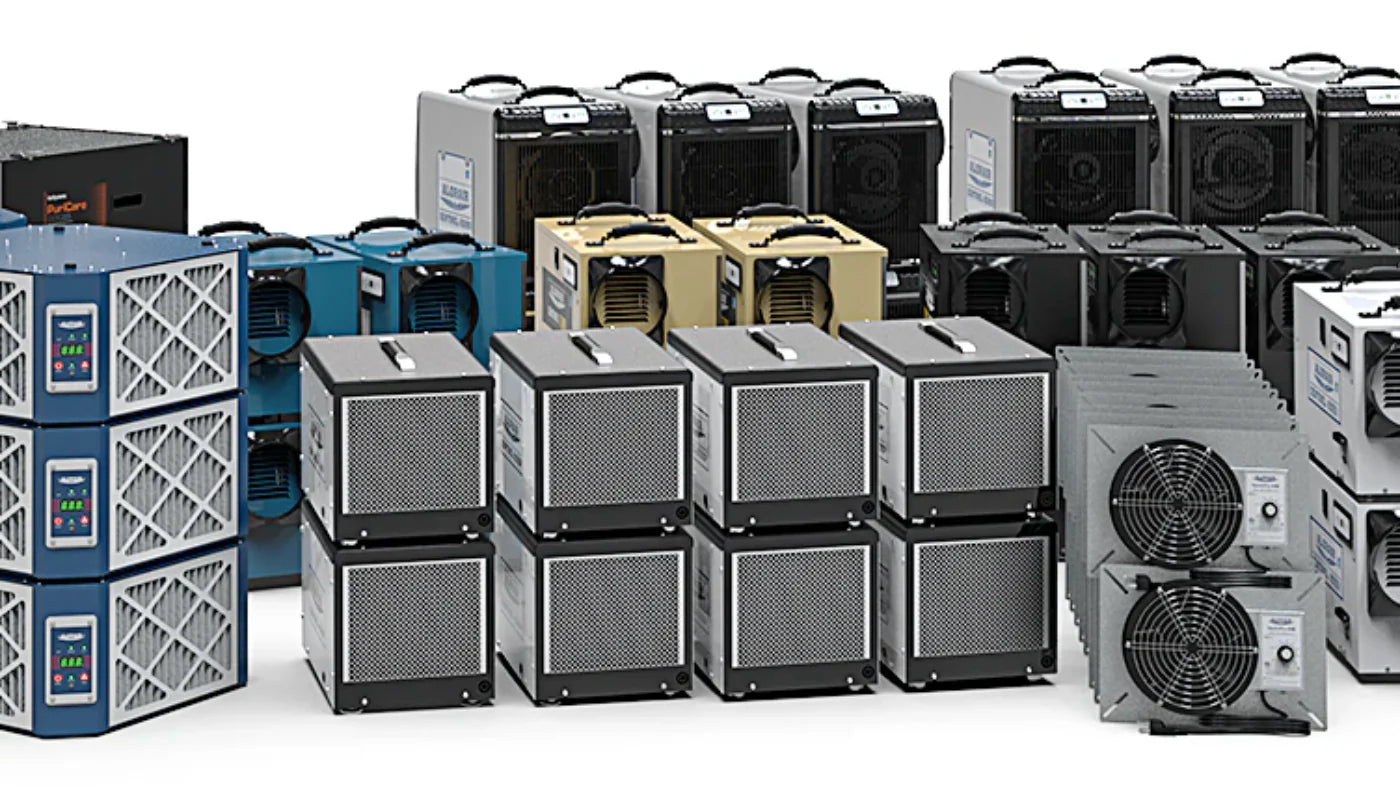

A DIY box-fan filter can suit a small hobby shop, temporary workspace or limited budget. A purpose-built shop air cleaner may be more appropriate when you need verified airflow specifications, multiple speed settings, remote operation, a timer, secure overhead mounting or a replacement-filter system designed for ongoing workshop use.
Compare delivered airflow, filter efficiency, noise, mounting options and replacement-filter costs—not purchase price alone.
If a DIY unit cannot provide the airflow, controls or secure mounting your shop needs, compare purpose-built woodshop air filtration systems by CFM, filter type, coverage and installation method.
Frequently Asked Questions
Is a DIY system as effective as a commercial air filtration system?
A DIY system may provide useful particle reduction in a small hobby shop when it has adequate filter area, sufficient delivered airflow and well-sealed construction. However, its performance cannot be assumed from the fan’s advertised CFM alone.
Purpose-built shop air cleaners may provide tested airflow specifications, durable housings, secure mounting, speed controls, timers and replaceable filters designed for ongoing workshop use. The better option depends on shop size, dust load, budget and whether the user can verify the DIY system’s performance.
What filter rating should I use for a woodshop?
Look for a filter with a higher MERV rating capable of capturing fine dust (sanding dust, MDF particles, etc.). Some DIY advice says to use MERV 13 or better. The filter must also be sized properly so that airflow is not overly restricted (which would reduce fan life and effectiveness).
How often should I replace the filters?
There is no single schedule for every woodshop. Check the filters often, especially after sanding or other dusty work. Replace disposable filters when they are heavily loaded, damaged, or noticeably restricting airflow.
Follow the filter manufacturer’s instructions. If your design uses reusable filters, clean them only as directed and make sure they are fully dry before reinstalling them.
Does a DIY Air Filter Replace a Dust Collector?
No. A dust collector or shop vacuum captures chips and dust close to the tool before they spread through the room. A DIY air cleaner filters part of the fine dust that escapes source collection and remains airborne. Most woodshops benefit from using both approaches rather than choosing one or the other.
Conclusion
A DIY air cleaner can be a practical addition to a small woodshop. Start with a suitable fan and enough filter area. Seal the gaps, place the unit where air can circulate, and check the filters regularly.
Its performance depends on the finished build, so do not judge it by the fan’s advertised CFM alone. Keep using dust collection at your tools and appropriate respiratory protection. If you need published airflow specifications or a permanent overhead installation, a purpose-built shop air cleaner may be a better fit.
